Head strip

I have always wanted to recondition the heads in my jubilee even though data does suggest my poor compression is largely down to bore wear. I found two old heads on eBay at a bargain price and thought that reconditioning these would make the rebuild time shorter and also give me some experience in working on these before tackling my originals. I will deal with head removal in a separate post when I get started on the bike. For the time being this is how I stripped the spare heads themselves.

The heads I got were dirty and corroded. One rocker was missing and only one of the three that were present was actually mobile; the rest were solid. There was a lot of dried on hermetite-like sealant on all mating surfaces. Nasty sticky stuff- difficult to remove and it has to come off or little bits can flake off and block something vital! Heads as received are shown below.






This is the left hand head- both tappets present here. The rockers are held in by the  bolt and captive nut passing through the head support pillar. This has a cut out in the bolt head that can locate over the flat on the rocker shaft to lock the eccentric in position and thus provide tappet clearance adjustment. Early bikes had a 3 BA sized nut but this was changed later to a 3/16 W/W. and this was also retrofitted when appropriate. This bike had one modified W/W and one BA head.

LH head- both rockers in position but rusted. Very dirty

Loosen 3/16 WW nut

Bolt has a special head with a flat facet to lock tappet adjuster

Better view of the locking flat
 Once the bolt is out the rockers should simply slip out too. Unfortunately mine were rusted in place. A blow torch loosened the rockers in the head pillars but couldn't unstick the spindles inside the rockers. I had no choice but to use a drift and tap the spindles through the rocker body. I was as gentle as I could be and hoped I didnt bend the mounting lugs.
Tapping on the rocker spindle to loosen it

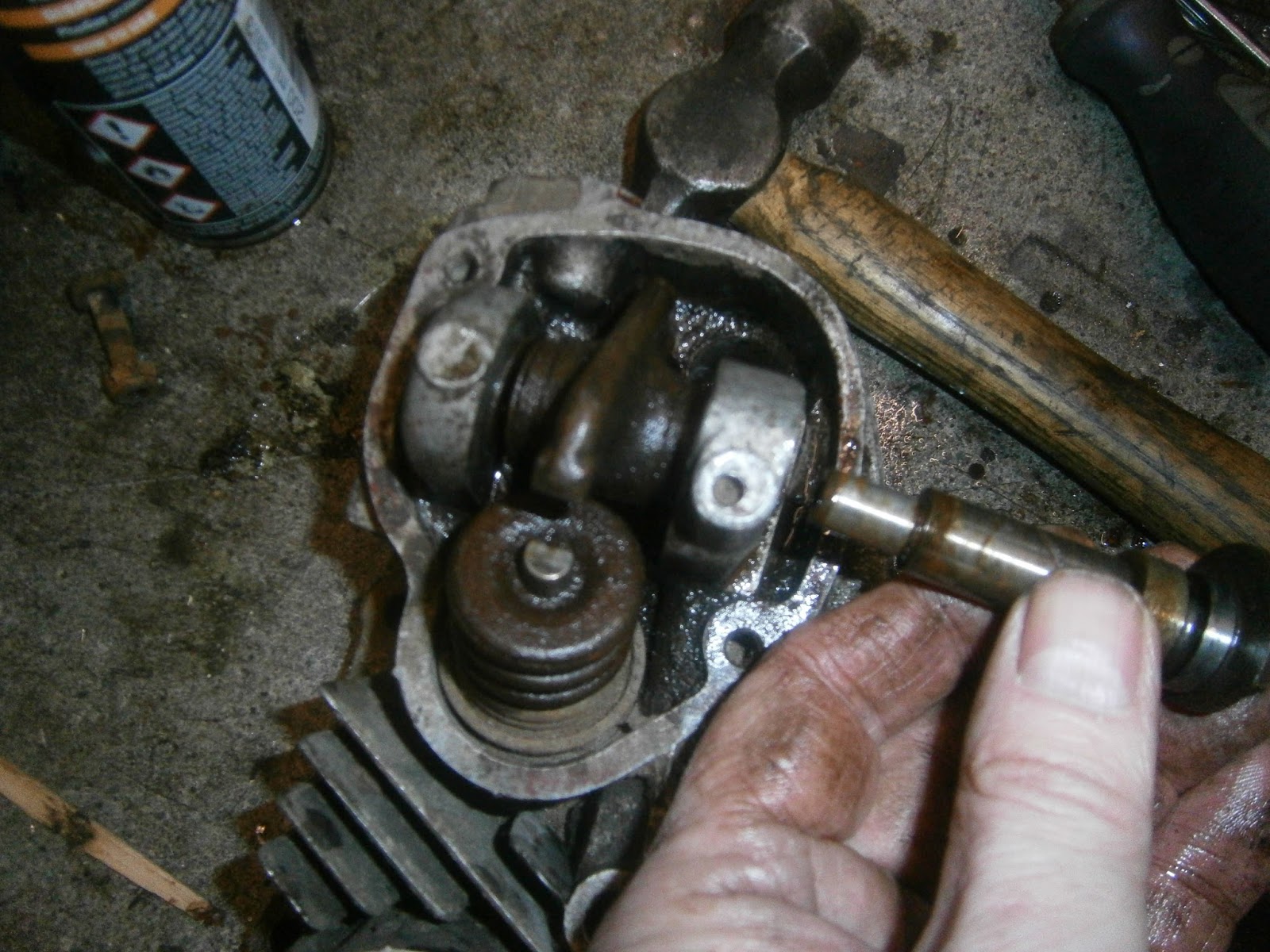

Rocker spindle could then be withdrawn


Removing the shaft leaves the rocker in place. Note there is a spiral spring on one side of the rocker and a thrust washer on the other. Tension in the spring holds the rocker in position after the shaft has been pulled out. In this pic the spring is to the left towards the centre of the bike (ie flat side of head)and the thrust washer on the right
 The rocker shaft then lifts out but take care to note the positions of the spring and thrust washer which are fitted on opposite sides.
When the rocker is inverted (ie looking down on the pushrod ball), if the ball is held downwards the the spring is on the left and the thrust washer on the right
 I removed both rockers


 ...and used a small valve compressor to remove the valves. In my case the split collets were stuck/corroded in position between the valve stem and spring head whilst the springs themselves were corroded onto the spring head piece. Nothing could move! This means that any use of the compressor is effectively trying to compress the valve stem... which obviously doesn't compress. This will just bend the compressor so if you think this applies, loosen the spring head piece and  collets using a mallet. Flood the collets with penetrating oil and then position a socket over the end of the valve stem so it rests on the spring head piece (not the valve) and give a sharp tap downwards several times to compress the spring momentarily. This can actually remove the collets so it might be wise to cover with a cloth in case they both come out and get catapulted into inaccessible places.  I was just trying to loosen everything up so I didn't bother. Eventually the collets shook free and I could use the compressor
 The valve compressor worked well but you have to approach from the flat side of the head.
Withdrawing the double spring and top cap- dirty spring seat left in position


Spring components removed and separated- split collets Top left, Spring top, both springs and spring seat but...

There is a washer beneath the spring seat which I had forgotten but this just lifts off once the seat has been removed.
 I cleaned up all the components in a sonicator and using a soft brass wire wheel.

 Check that the oil way in the spindle is clear- I used a guitar string to poke it through.

Check also these two holes on the top of the rocker itself. There is a groove here to catch oil and drip it through the passages at each end so check that both holes are clear. I found one blocked completely.

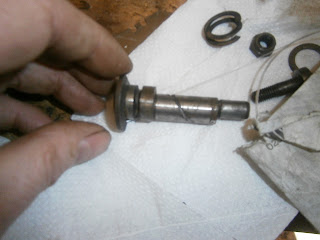

I loosely assembled the shaft with assembly lube to prevent new rust before assembly.
 The combustion chamber cleaned up well using a  Dremmel and a fine brass wheel. This also let me clean the ports. The valves were also cleaned on a soft brass wheel- and in both cases avoiding the stems and the seat. Valves now slipped easily back into the guides. There was a little wear detectable although this was taken up entirely when assembly lube was present so they may be fine in use. I removed any clagged on carbon around the base of the on the inside of the port by careful scraping- there was a lot more there than it looked and it all needs to come out or it will damage the head as the guides are driven out.

The head is now ready for rebuild but I'm not sure whether to replace the valves and guides in this one- there wasn't a lot of wear on the valve stems (third place decimal) and although there was play detectable in the guides it wasn't wildly excessive. I will think about that- no point in reconditioning this head if I discover that my originals are better when they are removed. I already have new valves, guides and springs but I only need to do this job once! As a minimum I need at least to recut the seats and regrind the valves. This will take a little thought as these valve stems and guide IDs are smaller at 7mm than the triumph and BSA guides (8mm)  that I'm used to.


Cleaned combustion chamber


Clean head!
I have got new valves and guides although I may not necessarily fit them to this head. However if not to these two, then I will be fitting them into the heads that I will eventually remove from the bike so I need to be set up to do this.This does present problems:
Firstly, I do not have ether a drift for guide removal or a tool for guide insertion to suit a 7mm valve stem. BSA/Triumph guides have an 8mm stem and so all my existing tools are too large. Secondly I don't have a pilot for my valve seat cutter that will fit inside a newly fitted guide of this size so I cant as yet recentralise the seats.

I made a drift from 9mm silver steel rod by turning down an inch or two to 7mm. It will need heat treatment (which currently I'm not set up to do). I also made a valve seat pilot from a short length of 8mm rod by threading the top for 5/16 UNF 24tpi to match my existing cutter handle and turning the rest down to 7mm giving a comfortable sliding fit through a new guide. Finally I made up a tool for valve guide insertion modelled on the commercial tool I had bought for my BSA.
Home-made valve guide insertion tool
This consists of an 18cm length of 7mm mild steel rod, turned down and threaded M6 for 25mm at one end and  M7 for 80mm at the other. The rod itself is a nice sliding fit inside the new guides.

The head end piece was made from a 20mm length of 40mm rod turned down to an 18mm face on one end by a 45degree taper and centre-drilled tapped to M6. The taper should self-centre in the valve seat before the new guide is drawn in. The rod above threads right through this head and can be secured with an M6 locknut so that it can be held during guide insertion.

The slider is made from 15mm brass rod faced and bored to 7mm to slide easily along the main rod and I made a compression nut using a 20mm length of 15mm hex rod centre-drilled and tapped to M7. The brass slider is flat-faced as the new guides have an obvious flat facet on their backs and brass shouldn't damage them. The hex rod was used instead of an M7 nut to give a longer thread engagement in order to spread the load. Its not that I think enormous forces are needed to insert a guide- its more that my threads aren't very good quality!  This tool does (should!) allow guide insertion in a cold head but I will not risk that and will preheat the head to 100 deg in my boiling bath anyway. Similarly I will be chilling the guides in the freezer to assist the fit.
tapered head, self-centreing
The head is reusable and can be applied to guides of any- other peculiar ids if required by making up an appropriate M6 threaded guide rod, slider and nut.

Sunday 16 April 2017

Front wheel; spindle, spacers and nuts... A cry for help!!

A cry for help!!

Anyone know how to put this wheel back together? I am puzzled by
1. Where can I get a new hub oil seal? Diagrams show felt seals but the bike had a thin rubber seal here... I can get a suitable width and hole size but only too thick. Has anyone found a more suitable seal?

2. Secondly, the order and arrangement of the spacers etc on the front axle is confusing and I cant find a the best way to assemble. Sadly I'm not absolutely sure how it goes back ... Or if it was put together right when I got it, but all orientations seem to give some sort of problem, floating forks etc.

If anyone has a bike with this pattern of front wheel please let me know how its assembled.
Thanks

....Well my previous post about the front wheel turns out to have been premature and I still have problems fitting it. I have made many enquiries and eventually turned up these two diagrams for front wheel mountings ... Although there are probably more than two such versions. The early bikes had an arrangement where sleeve nuts fitted on both ends of the spindle, removing these allowed the spindle to drop out vertically through slots in the bottom of the forks. My earlier bike has this arrangement and it features a spacer and a second nut inboard of the left hand fork which presumably retains the hub as an intact assembly as its slipped down and out of the fork (nos 20 and 21 below). The oil seals in this wheel are felt washers both sides each retained by a two part enclosure the outer part of which appears to be quite large (14 in plate E). The rhs spacer inside the hub (ie the one that fits into the RHS oil seal, 13 in plate E) is separate from the hub nut/bolt, the LHS spacer fits into the oil seal on the LHS.

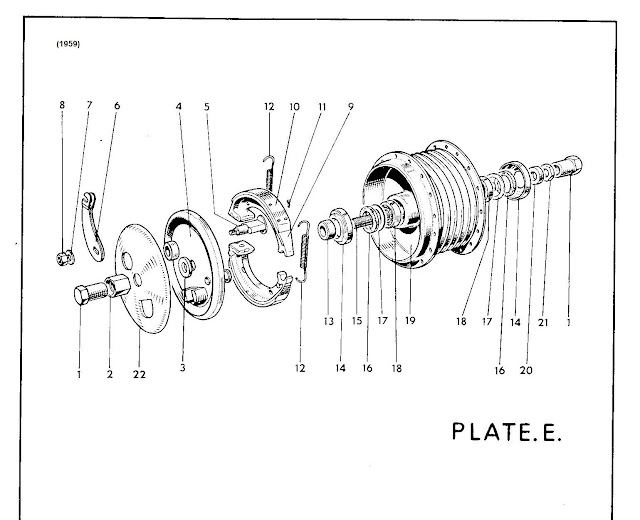

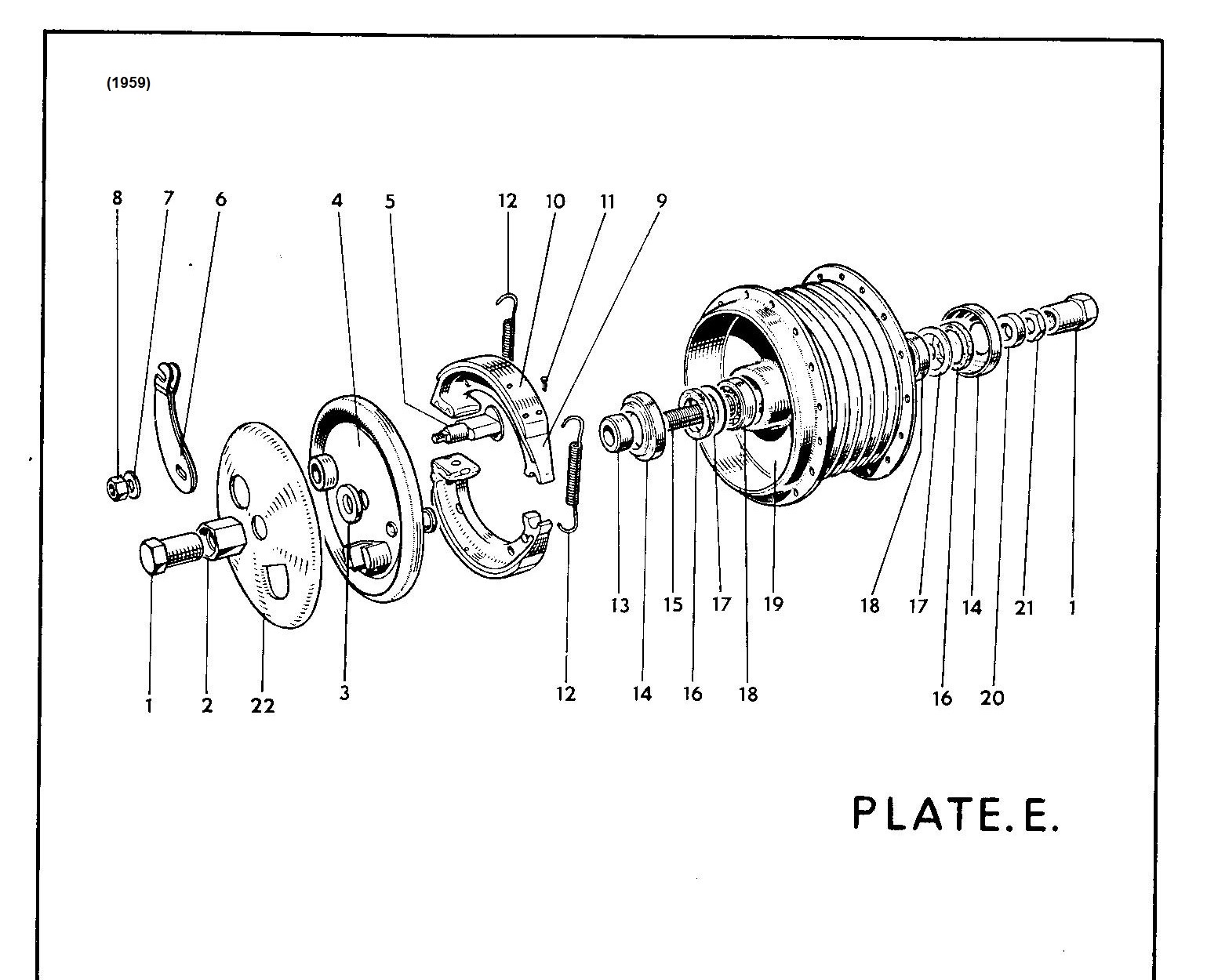

One for 59 and one for later shown in the 1963 re-issued parts list with drawings. This is shown below:


There are several differences although the main one is that the spindle has been changed removing the need for the sleeve nut on the RHS, this is replaced with a cast hole allowing the spindle to be held securely whilst the sleeve nut on the LHS is tightened or loosened. The internal hub spacer on the RHS has now been amalgamated into a modified hub fastener (3) which penetrates the felt oil seal when the hub is assembled. This oil seal is now containied in a slimmed down enclosure (17 plate EB) that's a neat fit inside the hub core (rather than over it as in the earlier design... I think). The Left hand side has also been modified. The oil seal has been replaced with a rubber seal (18) retained in a one-piece slim enclosure identical to that now on the RHS (17),  and the 15mm spacer and second (hub retaining) nut have vanished, although now the larger cover (14 in plate E) that presumably used to be used as the "enclosure" for the felt washer  is now referred to as a "spacer" itself (16 in plate EB) and has presumably been modified from the simple cover present on both sides of the '59 wheel (14 in plate E) to combine the functions of both cover and spacer in a single part. Certainly these two parts have different part numbers but the diagram is insufficiently clear to explain any difference between these components.

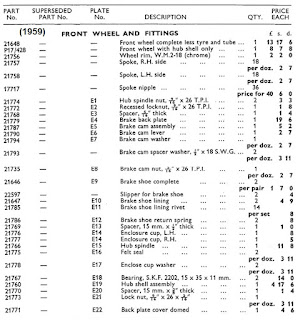

This change is listed in terms of parts in the 1961 parts list supplement, although this has no diagrams. The change in design took place between the two bikes I own and the question is whether it was introduced in one go or via a transitional stage. The reason I raise this is because my wheel is the later type from the RHS, through the bearings and hub (and even had a LHS rubber oil seal when dismantled) but beyond the oil seal my spindle still had a cover and a separate 15mm spacer, looking quite like the earlier bike setup- although the LHS internal thin hub nut in the earlier design  is not present. So... was this a transitional fitting where perhaps the spacer and cover were left separate for a time, a later mod by a PO, or is the diagram wrong in that the possibility of a separate spacer has simply been missed out of the 1963 illustration and list?

The whole thing is compounded because I cant get the wheel to centralise in a fixed position. This is because unlike other bikes where a nut bolts up against the fork leg to tighten, the sleeve nut tightens through the fork leg, the leg itself can slide along the sleeve no matter how tight the bolt is fastened- unless something such as a spacer holds the leg in one position on the sleeve and prevents this movement. Presumably all play should be taken up when the sleeve nut is tightened, meaning that the head of the nut should be flat on the outside of the fork, the spacers should be nipped up through the oil seal and against the bearing. There should be no free sleeve nut visible either inside or outside the fork as this would allow the fork to move along the sleeve so I assume that this must slip inside the spacer as its tightened through the fork leg. In my case when the sleeve nut is tight there is still movement in both the spacer and fork leg... which in turn means the wheel isn't held firmly in its central location. I cant help feeling that the problem lies in the spacer on the lhs which is too short... or perhaps the modified spacer/enclosure that should be here has been broken or missing and replaced with parts from a 59 bike?

Not always quite so lonely in the garage- here an occasional visitor!

Front wheel spindle as removed. Note all fixtures on the right have been reassembled into the brake plate and hub assembly. The solid axle terminus is on the right in this photo and the sleeve nut and spacer on the left. Note that the spindle has slight shoulders machined into it and also that the spacer has one chamfered and one square end. When removed the chamfered end was towards the outside of the spindle on the LHS.


Interestingly the spacer sits in different positions; when fitted each way round. Chamfer inwards it slides onto the axle over the machined shoulder to the position marked in blue...

... and chamfer outwards (as it was found on removal)  it slips on only to the position shown above.
Consequently the spacer appears to be counter-bored and this is presumably so that the extra width can allow the sleeve nut to enter the spacer and so avoid exposing excess sleeve nut on the inside. However in this orientation it may not contact the lh bearing in the hub.

Monday 30 November 2015

Starting up... and the Norton Jubilee AMAL 375 carburettor

Well folks... cycle parts are now back together... a few problems but nothing serious:

1. Footpegs are loose on their fittings- they are a strange fitting that is neither taper nor spline, its a sort of multifaceted stud that fits into a hole in the peg with similar profile. The trouble is any wear in the facets allows the peg to move slightly fore and aft (in the bike's direction) and this play can't be eliminated by tightening the nuts. It needs some form of packing to tighten up the fit or perhaps some weld to build up the low spots again coupled with refiling to restore the profile... but this seems a tricky job. I will probably see if I can find anything to pack the joint, metal exhaust tape perhaps?
2. The exhaust header pipe seemed a little loose in the head. This can be fixed (surprisingly ) using bathroom silicone sealant ... I am told- and I'm assured that it doesn't burn. However in the same vein I found a Copper-containing high temp silicone gasket maker from V-tech- just made for these applications!

The exhaust went in easily and sealed perfectly.

OK... moment of truth. The PO had started the bike for me when I collected it- it started reluctantly but it did start. It didn't run for long though but I was satisfied that at least everything was place- and I was buying it as a bike-with-a-problem anyway. He had also pointed out that it was smokey- at least on starting.

Well after a good tickle the bike started gratifyingly on first kick- however it wouldn't run-on. I found that the air slide had to be fully in to get running at all and the throttle needed constant blipping to keep it running. There was also the occasional spitting back through the carb. What was worse- as the running went on the motor got smokier and smokier. I also found that the kick start began to "slip" and cycled without compression- I'm not sure why but currently I favour clutch slip. The clutch centre turns and the rear wheel does turn when the bike is in gear even when these slippage events occur which suggests that the clutch outer is also turning... but I cant confirm this or tell if the motor is turning without compression or just not turning...? Need to check but unfortunately I cant kick it and make the observations at the same time so a bit of help would be useful. Perhaps the primary chain case is overfilled?- Try the simple solutions first!

Well I had always suspected that the valves and/or guides needed attention, I suspect the increase in smoke is telling me the same thing as the oil gets pumped up to the rockers in greater quantity as the new stuff works its way around the system. I checked oil return and it was flowing very nicely into the oil tank. One slight problem though- my bike has no dipstick and oil level isn't visible so it might even be a little over-filled which would also perhaps contribute to the smoke?

The requirement for full choke was at odds though, burning oil should richen the mixture and then full choke could lead to smoking from poorly burnt petrol as well! However spitting back is usually an indication of weakness- so even full choke is apparently too weak??? This requirement for full choke and the failure to run on I have seen before. I had virtually the same symptoms on my Triumph TR6 650 and then it was a classic blocked pilot jet in the carb. Although I do not think by any means that this is the Jubilee's only problem, a carb strip down and clean seems like a good idea so that was the next step. Sadly my camera charge expired soon after starting so some of these pictures are mock-ups taken after the fact.

Removing the Carburettor

Removing the carb should have been easy... just undo the top retaining ring and lift off the top complete with throttle slide and choke still attached to their cables. Then undo the two nuts on the carb body mounting flange, and slip the rest of the carb back from the motor and off the studs...

Well that was the theory!!  Unfortunately Norton have thought of that and carefully manufactured the bike so that the clearances are just too small! The backward clearance behind the carb is just less than the amount required for the flange to clear the studs, whilst the top clearance is just inadequate to remove the carb top and slides! These are only a little bit smaller than required but enough to turn a simple process into a swearing nightmare! Well removing the tank isn't a big deal but its a step that shouldn't be necessary- anyway top clearance solved. Rear clearance- well the frame cladding is in the way and removing that would be a real bother for a quick job so I managed eventually to finagle the carb off and out around the studs with a little swearing and relatively little collateral damage to the frame cover- I'm going to repaint eventually anyway! I think if I can shorten these two studs by about 3mm each I shouldn't have this problem again. (later investigation showed this isn't possible unless the nuts are thinned as well and this could result in insufficient thread to hold the flange)

the offending studs

Carb top, cables and sliders removed.


Carburettor strip:
In my book carburation is a black art; After many years thinking about them I have a sort-of understanding of what's what- but as each carb differs, I always have to work it out again from first principles. There will be a large element of "sucking eggs" for the more experienced reader- but its the process I go through to work out whats what and how it should be put together... So Apologies, feel free to skip!!


Carb as removed; Parts from the bottom- main jet retaining cover and nut, Pilot jet cover (right),Throttle stop screw (centre); carb body or jet block retaining screw (small black), Pilot air screw (far right)

Carb as removed. Parts from bottom: Main jet cover nut (base), main jet holder nut (larger immediately below float chamber), three float chamber cover retaining screws, tickler (centre), banjo fuel inlet (right)

To help with their carbs, Amal made (maybe still make?) this handy spanner. It fits pretty much all of their nuts although you cant use it on all of them because of geometrical constraints on access. Still if you have this (few quid on eBay) and a 1/8 and 5/16 WW spanner you should be fine! However having said that my carb had an aluminium bell mouth fitted. I simply couldn't unscrew that as it was locked onto its threads and there isn't anything firm or graspable to grab and turn. I left it for later when it did in fact come off after cleaning.



The first job was to unscrew the banjo-retaining nut and lift off the fuel inlet and filter beneath. Obviously this should be clean but finding muck here boded well for my blocked pilot jet  theory!
Removing the banjo union- fule filter beneath. Fuel arrives around the external periphery of this filter and is strained as it passes centrally and down into the carb. Muck here traqpped by filter clearly visible



Unscrew the three float camber cover screws and lift off the float chamber cover. This had been sealed with what I think is red Hermetite--- I haven't seen that stuff in ages! Anyway this had made the screws quite stiff where it had got down into the threads so a good clean was necessary. This gasket sealer can also get detached and could also block up a jet or two... so also good for my theory I think!
Screws out- hermetite in threads visible. Bell mouth resolutely still attached!

Brass bush removed- note base of needle valve behind. Note hermetite



needle in position
float lifts out
Once the cover is off remove the float and the small brass spacer on top. I don't think its possible to refit the float backwards but the spacer could be wrong so note that its on top of the float when the cover is removed. Remove the float and shake it to see if there's any liquid inside- this one was dry! If the float is leaking then it can be re-soldered, but its probably as easy to replace it with an ethanol-safe stay-up version from Burlen.
Old style plastic needle
Having removed the float, pick out the needle from the inlet needle valve seat in the top of the chamber. This one is the original all-plastic needle; these can fail over time so there is now a viton-tipped needle available that's thought to be better- I will definitely replace this part. Check the bottom of the chamber for sediment-this leads directly from the bottom of the chamber to the main jet so muck here has good access to the narrow spaces in the carb and jets. I found a small amount of very fine sediment here.
Sediment in bottom of float chamber, note red Hermetite that needs cleaning off before refitting the cover.

Remove the main jet assembly. I unscrewed the larger of the two base nuts which retains the whole jet assembly in the carb. This came off with its washer and could then be disassembled by gripping the base nut in a vice and screwing the main jet holder out of the body with the spanner.
unscrewing jet assembly via large nut

jet assembly removed

hold base (cover) nut in vice and unscrew jet holder body
Unscrew needle jet from top of holder- main jet from base.

Once the main jet holder is out then the main jet can be unscrewed from the base and the needle jet from the top. Check everything for blockage. I have found some shockers- but not in this case, all the jets and holes in the jet holder were nice and clear. There was a small amount of crud in the lower threads of the main jet holder, and some inside the main jet cover nut but I doubt that this had been causing a problem.

Inside jet holder, crud in threads.

The next step is to remove the pilot jet cover and its washer -you will need to 1/8WW spanner for that. The cover comes off to reveal the pilot jet itself which simply unscrews.
1/8 w to remove pilot jet cover. The jet underneath just screws out.

I next removed the two spring-loaded screws, the throttle stop (larger) and the pilot air control screw. I usually screw these in fully counting the turns before I then remove them completely so I have a guide to returning them to their approximate positions.
Remove spring loaded screws having noted their position, also remove jet block retaining screw

Next I removed the jet block screw completely and it was then possible to remove the jet block. According to the protocols, this should simply ease out with finger pressure- no such luck. I had to invert the carb and gently tap the block out with a soft metal (aluminium) drift. The block came free with its base washer present (this is really important; I had hoped that it might be missing to give a nice explanation!). The jet block showed signs of blackening through backfire, but its drillings were clear.

"Ease" jet block out... finger pressure?

I didn't want to remove the tickler or needle valve seat as I couldn't see any problem with either of those so this was about the limit of my dismantling. The next step was to clean everything thoroughly. At this stage I cleaned using an aerosol of carb cleaner with the extension pipe to get into all the openings. I couldn't really say that I found anything to give great concern, yes I had found a little sediment here and there but no jets were blocked and all the holes seemed clear. Its also necessary to clean out the drillings in the carb body. This is a little more tricky. You can use the carb cleaner and you will get an obvious blast of spray emerging from any openings that any particular drilling communicates with. The problem is that its not always apparent how many openings should communicate with any given passage- and if one is completely blocked you might therefore miss it. Sometimes you can get an idea of where they go by looking at the carb body, the course of an internal passage in the body can often be traced by following the tubular bulge in the casting onward from any particular opening. I am particularly interested in the pilot jet which should communicate to several other drillings and to understand how many and where to find them I needed to know a bit more about how the pilot system works. There is  great account of how the carb works on the Hitchcock's site but its heavy going. Try clicking on :
http://www.hitchcocksmotorcycles.com/hints-tips-monobloc  and then select "How it works and part names". I have taken the following diagram from that site and added my own explanation which I hope will be a little clearer- although possibly not entirely right!
Operation of Pilot Jet
1. Fuel flows up a 45 degree channel (10) from the float chamber fuel pool which flows through and surrounds the main jet assembly. The channel opens just above the base of the jet block to reach the base of the pilot jet (9). As this is below the fuel height in the float chamber there should always be a pool of petrol here.
2. Even when the throttle is closed, air can still enter the carb body via the primary air channel (35) which opens through one of two holes just below the main air intake on the back of the carb. This channel communicates with the space surrounding the needle inside the jet block. From here it can pass through the horizontal channel (31) in the jet block just above the needle jet, past the pilot air adjusting screw (not shown in this diagram) which regulates the flow, to communicate with the top of the pilot jet. This means that air can always reach to top of the pilot jet and fuel can always reach the bottom. However unless there is anywhere for the air to emerge this wouldn't achieve anything.
To allow the air/fuel mix to emerge into the carburettor throat (and thence to the motor) there are two small holes drilled from the carb throat that communicate with the primary air channel (pilot air system passages). The first is the Pilot jet main outlet (7) situated directly above the pilot jet, and the second is termed the pilot jet bypass (8) and is positioned in the jet block under the throttle slide.

The system works as the motor turns and sucks on the carb, pulling in air. If the throttle is closed then air can't enter easily through the throat as this path is blocked by the lowered throttle slide (5), and so this suction acts mainly on the two drillings inside the carb throat. As the throttle  is closed the second opening (8, the bypass) is relatively shielded by the throttle slide itself, so the whole suction effect of the descending piston acts to pull air out of the pilot jet outlet. This pulls air into the carb through the primary air channel, forcing it to flow along that channel, past the adjusting screw and over and around the top of the pilot jet, and then up, out of the carb body and into the throat through the main pilot outlet (7). As this air is sucked over and around the pilot jet, the fuel is also sucked, through the jet, atomised by the holes and openings in the jet and mixed with the air. It is this fuel air mixture that emerges through the main pilot jet outlet into the carb throat downstream of the throttle slide. From here it can flow onwards to burn in the motor even when the throttle is fully closed. As the throttle is opened, more air is drawn into the motor past the throttle slide itself meaning that the suction experienced at the pilot outlet hole (7) is decreased. However, the throttle slide cant take over and supply all the air/fuel required all at once, so there is a second drilling (8, pilot jet bypass) situated directly under the throttle slide (and actually part of the jet block), that adds fuel/air via the pilot system at low throttle openings before the slide moves up far enough to supply the motor entirely by itself.





1. Mixing Chamber 2. Mixing Chamber cap
3. Carburetter Body
4. Jet Needle Clip
5. Throttle Valve
6. Jet Needle
7. Pilot Outlet
8. Pilot by-pass
9. Pilot Jet
10. Petrol feed to pilot jet
11. Pilot Jet Cover Nut
12. Main Jet Cover
13. Main Jet
14. Jet Holder
15. Needle Jet
16. Jet Block
17. Air Valve
18. Mixing Chamber Cap Spring

19. Cable Adjuster (Air)
20. Cable Adjuster (Throttle)
21. Tickler
22. Banjo Bolt
23. Banjo
24. Filter Gauze
25. Needle Seating
26. Needle
27. Float
28. Side Cover Screws
29. Pilot Air Adjusting Screw
30. Throttle Adjusting Screw
31. Air to Pilot Jet
32. Feed Holes in Pilot Jet
33. Bleed Holes in Needle Jet
34. Primary Air Choke
35. Primary Air Passage
36. Throttle valve Cutaway


The upshot of this is that for correct pilot jet function,  squirting carb cleaner into the hole from which the pilot jet has been removed should show 4 outlets; it should flow downwards and out of the fuel inlet drilling, inwards to emerge from the air intake hole and upwards to emerge out of both outlet and bypass holes (note if the jet block has been removed, it will just squirt horizontally out of the air passage into the throttle chamber). In my case I could see it emerge from the fuel and air intakes and from the main pilot jet outlet,  and into the throttle space as above since I had removed the jet block which contains the 90 degree bend and bypass drilling... well I wasn't looking for that at the time! However nothing seemed to be blocked so no explanation here. Of course it is necessary for the openings in the jet block to align with those in the carb body or airflow will be interrupted and given the tightness of this block then perhaps it was jammed in, and out of alignment? I will need to check this and the remaining pilot bypass drilling when I get back into the workshop.

In the meantime I put all the components into a sonicating bath to clean at 65 degrees. I know this doesn't work very well as I have only a low power sonication bath more suited to jewellery than engineering (!) but hopefully it will loosen up anything I couldn't clear by blasting through with carb cleaner. I should then be able to flush the system out with  the water/detergent mix in the cleaner and a dropper pipette. Incidentally if you do find a blocked passage or jet the advice is to clean it with a blast of air... good luck with that! When this stuff crystallizes in the carb its quite granular and pretty hard. You can buy a set of carb cleaning wires but frankly I think the high "E" string from a guitar is pretty much perfect... its smaller than most jets and a single poke will shift virtually anything- its also flexible enough to get around many of the drillings in the carb body. However, don't scrub or rotate it as this will definitely enlarge the jets!

So-- back in the workshop... After a good clean and dry- I did find something that might be interpreted as muck in both the pilot jet and the bypass hole, although  neither were by any means actually blocked. Then its reassembly time. To be honest I don't think I found nearly enough dirt in the carb to account for the running behaviour but I won't know until I test it. For reassembly I bought the 375 gasket set from NOC. Its cheaper than the set from Burlen but I wouldn't get it again. Although the fibre washers are fine, the gaskets and paper washers didn't fit well. It was hard to get the jet block base washer on without tearing and the screw holes didn't line up properly in the float chamber gasket. The gasket tore when I tired to enlarge them and I had to cut a new one out of some nitrile rubber sheet which fits much better. I cleaned the threads of the three cover screws by chasing with a 2BA die nut.
Cleaned parts ready for reassembly

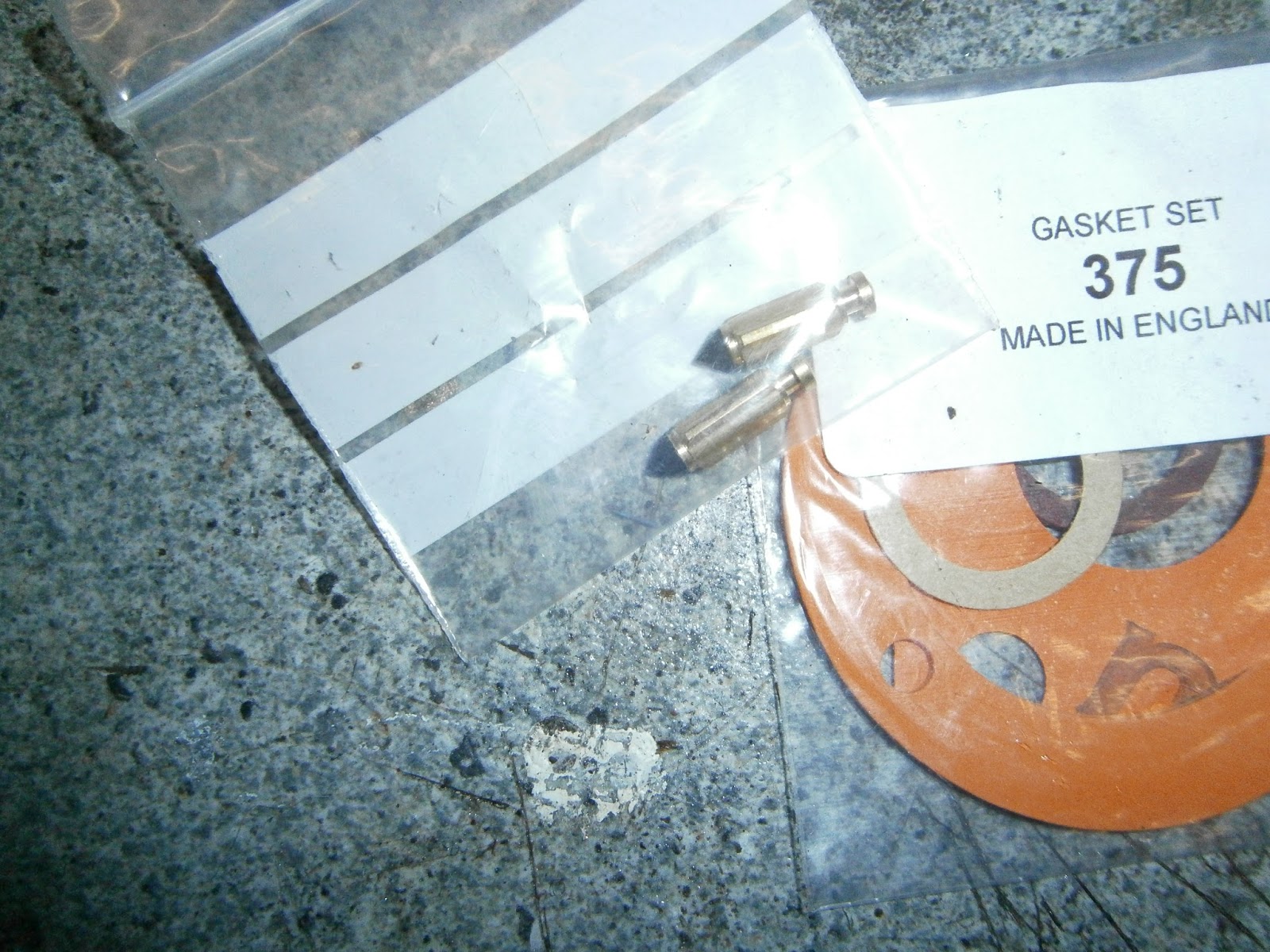

NOC gasket kit 375 plus new needle valves
New paper gasket on base of jet block

Jet block installed- checked alignment of air intake holes to air passages in the body

Jet block in place (from above)

Inserted pilot jet and then pilot jet cover with new fibre washer

Inserting control screws- this one the pilot air regulator

Needle valves compared- old valve on right is all plastic, new valve has viton tip

Needle valve, float and brass bush installed.

Main jet assembly rebuilt and new fibre washer

New fibre washer under banjo union nut, black nitrile gasket to float chamber lid.


I fitted new fibre washers under the main jet assembly, pilot jet cover nut and banjo bolt- and a new paper washer under the jet block. The block was checked carefully to make sure that the pilot jet bypass (which exits through the block) was clear, and that the air passage holes in the block lined up with those in the carb body by poking the plastic tube from the carb cleaner can through to check for access. Having ensured it was fully seated I refitted the retaining screw. The banjo filter on my carb had the integrated flange and so doesn't need the bottom washer seen in earlier versions.
I refitted the air and throttle stop screws having cleaned their threads. (Screw fully "in" and then "out" 1.5 turns as a good starting point if you have no data from their original positions).

The NOC kit doesn't include a new "O" ring for the intake flange; although mine seems in good condition I would prefer to change it as this can be a cause of a weak mixture and the spitting back I had noticed before. I will see whether any I have will fit although most of mine are metric and this will be an imperial size... Note added later- a R23 O ring fitted perfectly!

Finally, I detached the intake trumpet which was loosened by sonication and cleaned its threads. I will apply copper grease here to prevent it seizing again when I reassemble, but I wont refit until the carb is on to try and get a little more clearance for refitting.

Carb refitted... you can get more clearance if you remove the banjo housing and filter, its then just possible to wiggle the carb in. My frame covers have been pop-riveted into place so I am suspicious that the covers on this bike aren't original... they have a suspicious look of the  "home made" about them! Unfortunately I have no comparison as they are missing from the red bike but I'll try to find some pictures online.

Given the possibility of muck in the carb from last time I fitted an additional in-line fuel filter to make doubly sure that this can't happen again.

Well dear reader- you have probably guessed that the work above has made not a jot of difference to the bike's running... in fact if anything it runs less well now than it did but at I am now certain that the problem isn't the carburation.

I was able to show that the pistons were still moving up, even when the engine seemed to have lost so much compression it felt like clutch slip! There was also a nasty black deposit on top of the pistons and nasty black stuff on the plugs. Finally I did a compression test- dry I got 40 and 70 psi, and wet both shot up to over 140 psi!! The initial figures are so low this does suggest that there is something horribly amiss inside this motor and the increase on adding oil suggests that this is largely bore/piston wear. A full strip is now essential and almost certainly  a rebore or barrel swap as well as the top end overhaul I had anticipated.
